Cell Saver® Elite®+
The Cell Saver® Elite®+ autologous blood recovery system provides hospitals with an easy-to-use, reliable way to recover a patient’s own high-quality blood during medium to high blood loss procedures, including cardiac, orthopedic, trauma, transplant, vascular and OBGYN surgeries. Once recovered, the blood is washed and delivered to a product bag. The complete system is designed to be intuitive and flexible for optimal performance, supporting exceptional patient care.
![Cell Saver Elite+ Intelligent Control](/-/media/images/content/mastheads/hospital/cse-ic-hospital_masthead-images-(not-home-page)-500x574.jpg?as=0&w=641&hash=18BD26C7A3D89EC26626F0F992E9D83E)
Intelligent Control Software Now Available
Cell Saver® Elite®+ System
Make a selection to learn more
Cell Saver® Elite®+ System
Dynamic Intelligent Control
Increased versatility and greater control as a result of simplified software that’s designed for speed and efficiency.
- User control with full Manual Mode settings
- Achieve AABB® recommended wash volumes without sacrificing blood quality
- Finer control of suction with smaller suction pressure increments
- Additional flexibility with smaller incremental wash volume settings
- Ability to reduce or bypass recentrifuge delay for faster restarts
- Optimize efficiency with the option to delay priming
- Increased pump acceleration rates
- Quick transfer of whole blood to handle high blood loss
- Streamlined operation with over 50 automation enhancements
- Prevent delays by pre-programing the Final Cycle
- Peace of mind increased with an On-Screen Cover Lock Indicator
![](/-/media/images/content/single-product-image/hospital/cell-salvage/dynamicic-hospital-single-product-image-570x570-recovered.jpg)
Simplicity
Built for functionality, the Cell Saver® Elite®+ device features a simple interface, intuitive set up, and ergonomic design.
- One-touch operation is simple to learn
- See performance at-a-glance with the 8.5” adjustable touch screen and status indicator beacon
- Get on-screen help with one-touch
- Start suction in seconds
- Scan barcodes for ease of data entry
- Pre-assembled processing sets & color coded tubing lines for quick setup
- Clear top cover with safety lock indicator
- Move easily with small footprint and ergonomic cart
- Secure data collection and transfer options via WiFi, Ethernet, or USB
- Prevent delays by pre-programing the Final Cycle
![](/-/media/images/content/single-product-image/hospital/cell-salvage/cse-brochure-open-and-closed-cover-edited-429x429-web-optimized.jpg)
![](/-/media/images/content/single-product-image/hospital/cell-salvage/cse-brochure-full-color-touchscreen-429x429-web-optimized.jpg)
Versatility
From intuitive one-button operation to complete control of every process, the Cell Saver Elite+ system is designed to fit how you operate.
- Customize and save user profiles tailored to your performance needs
- Integrated SmartSuction® or manual suction at 10 mmHg increments
- Three bowl volume options
- AABB® recommended wash volumes are available without sacrificing blood quality
- Quickly transfer blood in critical blood loss situations with New Emergency options
- Wash volumes
- Pump speeds
- Processing modes
- Sensor triggers
![](/-/media/images/content/single-product-image/hospital/cell-salvage/cse-brochure-intuitive-simple-programming-screen-429x429-web-optimized.jpg)
![](/-/media/images/content/single-product-image/hospital/versatility-graphic-429x429-updated-web-optimized.jpg)
High Quality Blood Return
After 50 years advancing autotransfusion, our Intelligent Control software builds on our SmartSuction® and Latham Bowl technologies to help maximize RBCs recovered for reinfusion
- 94% Red Blood Cell recovery rate making more RBCs available for reinfusion
- Up to 66% Hematocrit with an average of 58%1
- 99% washout rates of undesirable components including:
- Plasma-free hemoglobin
- Heparin
- Potassium
- Total proteins
- Fat
- Detects air in the aspiration line and automatically decreases vacuum force to evacuate blood gently
- Significantly reduce hemolysis compared to constant pressure2
1. Data on file at Haemonetics Corp. TR-OTH-100646. Actual performance results may vary depending on in-use variables. Test results are approximate using Haemonetics Default with 225 mL processing bowl.
2. Elkin KR, Yazer M, Kameneva M, Waters J. Transfusion 2007;47(11):20A-21A [DR107247].
3. In Laboratory testing.
4. See Operation Manual for full performance data.
![](/-/media/images/content/single-product-image/hospital/cell-salvage/dynamicic-one,-d-,pic5lefthospital-single-product-image-570x570-recovered.jpg)
![](/-/media/images/content/single-product-image/hospital/cell-salvage/dynamicic-one,-d-,pic5righthospital-single-product-image-570x570-recovered.jpg)
![Haemonetics](/-/media/images/content/icon-content-callout/hospital/hospital-services,-d-,icon-content-card-360x360b.jpg?h=360&w=360&hash=03F3BDF8127991FD16BE13DF3DE778A6)
Delivering Value Beyond the Technology
Investing in an autologous blood recovery device is an important clinical and economic decision for your hospital. With Haemonetics you have access to a comprehensive suite of programs and services to support your needs - from system implementation to education, technical support and service.
![](/-/media/images/content/two-by-four-cards/hospital/cell-saver-elearning-card-sept2023.png?h=687&iar=0&w=687&hash=B04229046D63ACA02B8F86ED1BC9B6BC)

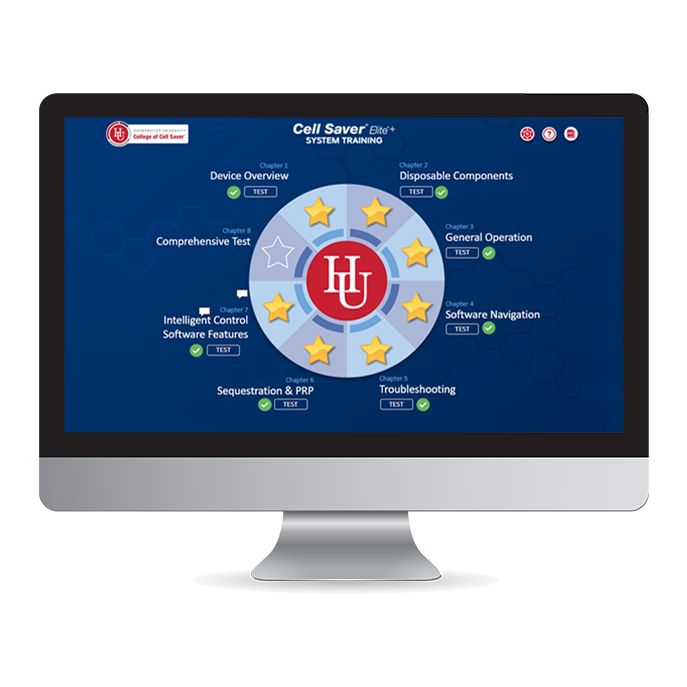

eLearning
![](/-/media/images/content/two-by-four-cards/hospital/cse_resources_product-card-images-(for-2x4-content-card-array)-687x687.png?h=687&iar=0&w=687&hash=4B96FBE1A36EF193EE5D21A310176A98)
Resource Center
Featured Resources View all resources
Cell Saver® Elite®+ Brochure
In medium to high blood loss procedures, the Cell Saver Elite+ system provides the hospital with a fast, reliable, easy-to-use way to recover and deliver a patient’s own high-quality blood to a product bag.
Role of Cell Saver® in PBM
Cell salvage is an important option to recover shed blood which reduces the need for donated blood, while helping to improve safety, cost-effectiveness, and efficacy.
Quick Reference Guide
This Cell Saver® Elite®+ Quick Reference Guide provides valuable information on how to operate, maintain, and troubleshoot our cell salvage system.
Cell Saver® Elite®+ System User Manual
This User Manual provides users with the information needed to safely operate and maintain the Cell Saver Elite+ system and ensure optimal performance.
Characteristic | Value |
Device only | Height: 16.5 in (41.9 cm) Width: 11.75 in (29.8 cm) Depth: 21.5 in (54.6 cm) |
Device with cart | Height: 72 in (182.9 cm) poles extended Height: 48 in (121.9 cm) poles down Width: 21 in (53.3 cm) Depth: 26.5 in (67.3 cm) |
Weight of device | ∼ 56 lbs (25 kg) |
Weight of cart | ∼ 40 lbs (18 kg) |
Voltage | 100–240 VAC ±10% |
Pump speed | 0–1000 mL/min (adjustable) |
Centrifuge speed | Latham bowl: 5650 rpm Blow-molded bowl: 7500 rpm Sequestration: 2050–5650 rpm (adjustable) |
Fuse rating | 100–240V: T3.15A250V |
Operating frequency | 47–63 Hz |
Laser classification | Class 3R laser product |
Power cord length | 16 ft (4.9 m) |
Certifications | ETL Listed |
Description | Part Number | Qty Per Case |
Cell Saver® Elite®+ System | CSE-EW-US |
1 |
Cell Saver Elite Cart | CSE-EA-1000 |
1 |
Cell Saver Elite Fast Pack (225 mL, 205, 208, HAR-A-1000) | CSE-FP-225V | 4 |
Cell Saver Elite Fast Pack (225 mL, 220, 208, HAR-A-1000) |
CSE-FP-225F | 4 |
Cell Saver Elite Fast Pack (125 mL, 205, 208, HAR-A-1000) | CSE-FP-125V | 4 |
Cell Saver Elite Processing Set (225 mL) | CSE-P-225 | 8 |
Cell Saver Elite Processing Set (125 mL) | CSE-P-125 | 8 |
Cell Saver Elite Processing Set (70 mL) | CSE-P-70 | 8 |
Sequestration Kit | CSE-SQ-1000 | 8 |
Collection Reservoir w/150 μ filter, 3 L | 00205-00 | 4 |
Collection Reservoir w/20 μ filter, 3 L | 00220-00 | 4 |
Cell Saver Aspiration & Anticoagulation Line | 00208-00 | 20 |
SmartSuction® Filtered Vacuum Line, non-sterile | HAR-A-1000 | 10 |
RBC Bag, 1000 mL | 00245-00 | 40 |
Waste Bag, 10 L | CSE-B-1000 | 10 |
Y Set with Extension Line | 00240-00 | 8 |
Step Down Adapter | ATA-A-1000 | 20 |
70 mL Bowl Chuck Adapter | 107581-00 | 1 |
