Cell Saver® Elite®+ System
The Cell Saver® Elite®+ autotransfusion system provides hospitals with an easy-to-use way to recover a patient’s own blood during medium to high blood loss procedures. This includes cardiac, orthopedic, trauma, transplant, vascular and OBGYN surgeries. The complete system is designed to be intuitive and flexible for optimal performance and to support exceptional patient care.
-500x574/cell-saver-elite-plus.jpg?as=0&w=641&hash=C34670B30509E107C3096F42317DB110)
Cell Saver® Elite®+ System
Make a selection to learn more
Cell Saver® Elite®+ System
Simplicity
- The complete system is designed to be intuitive and flexible for optimal performance with no annual preventative maintenance required1
- User-friendly, full colour touch screen with status indicator light
- Fast and easy disposable set-up with a one-piece disposable cartridge
- Quick suction set-up with options available in seconds
- Pre-programmed with a fat reduction protocol that provides >99% fat reduction2
- Small footprint, lightweight for easy transport between operating rooms
2. Data based on internal studies and on file at Haemonetics Corp. TR-OTH-100641A. Actual performance results may vary depending on in-use variables. Test results are approximate using Fat Reduction default protocol with 225 mL processing bowl.
Versatility
Videos On-Demand
Designed for the way you work and adaptable for a wide variety of cases - cardiac, orthopaedic, trauma, transplant, vascular and OBGYN surgeries - and providing the flexibility to define unique settings for each group at system start-up.
- Flexibility to define one-touch settings for system start-up
- Multiple bowl volume options to customise performance based on anticipated blood loss or procedure type
Blood Quality
Videos On-Demand
|
Cell Saver® Elite®+ System in Patient Blood Management

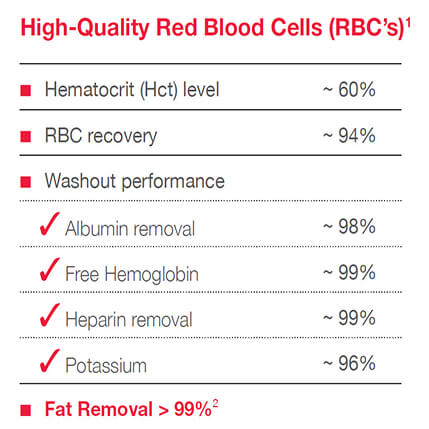

The Cell Saver® Elite®+ system delivers a blood product with high haematocrit and blood recovery percentages, with optimal washout rates.1,2
Washouts- ~99% washout rates of undesirable components including: fat removal, plasma free haemoglobin, heparin removal1,2
- ~98% albumin removal1
- ~96% potassium washout1
- Detects air in the aspiration line and automatically decreases vacuum force to evacuate blood gently
- Significantly reduces haemolysis compared to constant pressure3
2. Data based on internal studies and on file at Haemonetics Corp. TR-OTH-100641A. Actual performance results may vary depending on in-use variables. Test results are approximate using Fat Reduction default protocol with 225 mL processing bowl.
3. Elkin KR, Yazer M, Kameneva M, Waters J. Transfusion 2007;47(11):20A-21A [DR107247].
Delivering Value Beyond the Technology
Investing in an autotransfusion system is an important clinical and economic decision for your hospital. With Haemonetics you have access to a comprehensive suite of programs and services to support your needs - from system implementation to education, technical support and service.

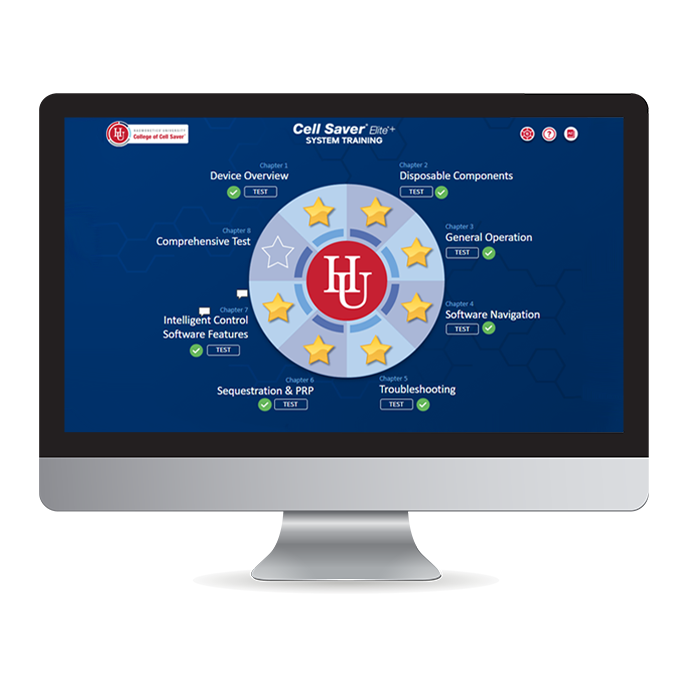

eLearning
-687x687.png?as=0&w=687&hash=CEB7B37C576DED04B15A675BDDA867EA)
Resource Centre
Featured Resources View all resources
Cell Saver® Elite®+ System Brochure
In medium to high blood loss procedures, the Cell Saver Elite+ system provides the hospital with a fast and easy-to-use way to recover and deliver a patient’s own high-quality blood to a product bag.
Role of the Cell Saver® Elite®+ System in PBM
Cell salvage is an important option to recover shed blood, which reduces the need for donated blood, while helping to improve safety, cost-effectiveness and efficacy.
Quick Reference Guide
This Cell Saver® Elite®+ system Quick Reference Guide provides valuable information on how to operate, maintain and troubleshoot our cell salvage system.
Cell Saver® Elite®+ System User Manual
This User Manual provides users with the information needed to safely operate and maintain the Cell Saver Elite+ system and ensure optimal performance.
| Characteristic | Value |
| Device only | Height: 16.5 in (41.9 cm) Width: 11.75 in (29.8 cm) Depth: 21.5 in (54.6 cm) |
| Device with cart | Height: 72 in (182.9 cm) poles extended Height: 48 in (121.9 cm) poles down Width: 21 in (53.3 cm) Depth: 26.5 in (67.3 cm) |
| Weight of device | ∼ 56 lbs (25 kg) |
| Weight of cart | ∼ 40 lbs (18 kg) |
| Voltage | 100–240 VAC ±10% |
| Pump speed | 0–1000 mL/min (adjustable) |
| Centrifuge speed | Latham bowl: 5650 rpm Blow-molded bowl: 7500 rpm Sequestration: 2050–5650 rpm (adjustable) |
| Fuse rating | 100–240V: T3.15A250V |
| Operating frequency | 47–63 Hz |
| Laser classification | Class 3R laser product |
| Power cord length | 16 ft (4.9 m) |
| Certifications | ETL Listed |
| Description | Part Number | Qty Per Case |
| Cell Saver® Elite®+ System | CSE-EW-IE* |
1 |
| Cell Saver Elite Cart | CSE-EA-1000 |
1 |
| Cell Saver Elite Fast Pack (225 mL, 205, 208, HAR-A-1000) | CSE-FP-225V | 4 |
| Cell Saver Elite Fast Pack (125 mL, 205, 208, HAR-A-1000) | CSE-FP-125V | 4 |
| Cell Saver Elite Processing Set (225 mL) | CSE-P-225 | 8 |
| Cell Saver Elite Processing Set (125 mL) | CSE-P-125 | 8 |
| Cell Saver Elite Processing Set (70 mL) | CSE-P-70 | 8 |
| Sequestration Kit | CSE-SQ-1000 | 8 |
| Collection Reservoir w/150 μ filter, 3 L | 00205-00 | 4 |
| Collection Reservoir w/20 μ filter, 3 L | 00220-00 | 4 |
| Cell Saver Aspiration & Anticoagulation Line | 00208-00 | 20 |
| SmartSuction® Filtered Vacuum Line, non-sterile | HAR-A-1000 | 10 |
| RBC Bag, 1000 mL | 00245-00 | 40 |
| Waste Bag, 10 L | CSE-B-1000 | 10 |
| 70 mL Bowl Chuck Adapter | 107581-00 | 1 |
| User Manual | 120858-IE* | 1 |
Not all products are available in all markets.
